Product Description

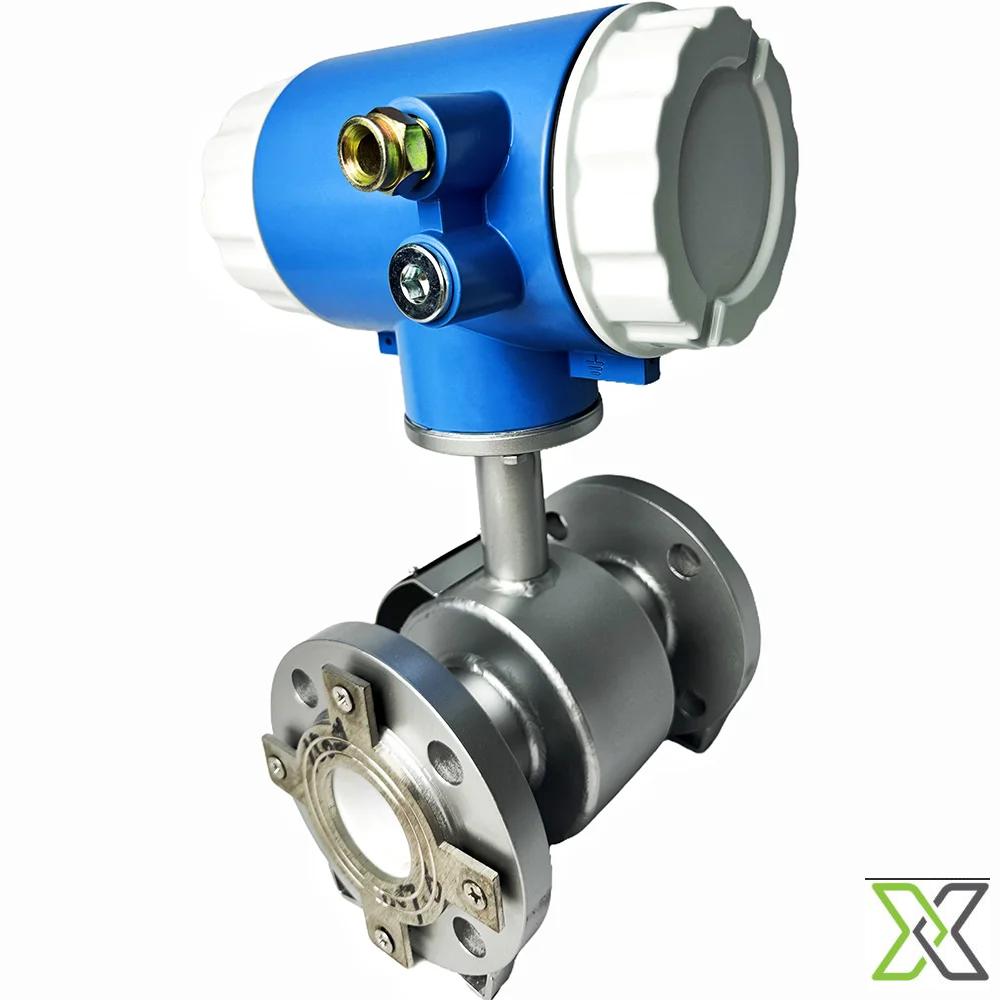

The AEM Series Electromagnetic Flowmeter is designed based on Faraday’s electromagnetic induction principle for measuring the volumetric flow rate of conductive liquids and slurries in closed pipelines. The measurement is not affected by changes in liquid density, viscosity, temperature, or pressure.

The unit features a full-bore design with no moving parts, resulting in no pressure loss and reduced maintenance requirements. It incorporates intelligent self-diagnostic functions and stable zero-point performance for consistent measurement accuracy.

The flowmeter supports multiple output signals and communication protocols, allowing integration into industrial control systems. It is suitable for a range of applications including water treatment, industrial fluids, and conductive media measurement.

Specifications

– Measurement Principle: Electromagnetic (Faraday’s Law)
– Size Range: DN15 – DN3000
– Medium: Conductive liquids and slurries
– Accuracy: ±0.5% to ±1.0%
– Repeatability: ≤1/3 of maximum allowable error
– Ambient Temperature: -20°C to +55°C
– Relative Humidity: 5% – 90%
– Fluid Conductivity: ≥5 μS/cm
– Power Supply:
 • 24VDC
 • 85–265VAC
 • 3.6V lithium battery
– Output Signal: 4–20 mA current, frequency (1–5000 Hz), RS485 Modbus, HART
– Protection Rating: IP65, IP68 (optional immersion structure)
– Pressure Rating: PN6 – PN40
– Explosion Proof: Exd ib IIC T6 Gb
– Lining Material: PTFE, PFA, rubber (various options)
– Electrode Material: 316L stainless steel, Hastelloy, titanium, tantalum, etc.
– Installation: Flanged or insertion type

Key Features

– Measurement independent of fluid properties such as density and viscosity
– No moving parts and no pressure loss
– Stable zero point with no drift
– Integrated self-diagnostic and alarm functions
– Wide range of output and communication options
– Suitable for large diameter pipeline applications
