YJV32 ZR-YJV32 12/20kV XLPE Insulated Armored Power Cable

ReflowX SKU: REF-3712

Product Details

  • Quantity
    500
  • Availability (Lead Time)
    6-10 Weeks
  • Product Location
    China
  • Condition
    New
  • OEM
    SH Cables
  • Equipment code
    983355
Get Quotation Whatsapp

Short Description

Armoured medium voltage cable with XLPE insulation and PVC/PE sheath, rated at 12/20kV.

Description

Description

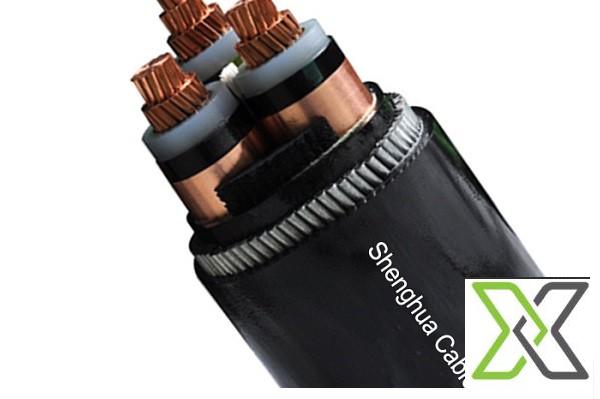

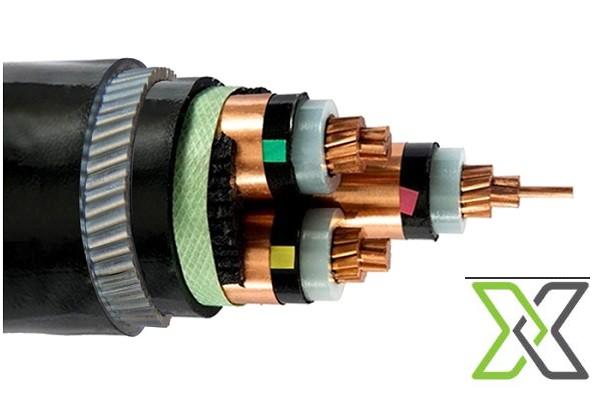

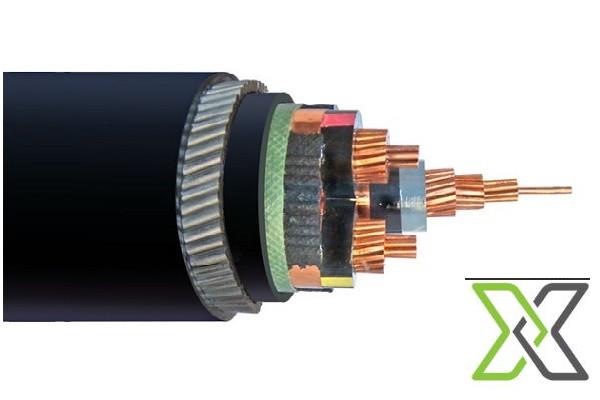

YJV32 / ZR-YJV32 cables are medium voltage power cables manufactured with compact stranded copper conductors and XLPE insulation. The construction includes semi-conductive conductor and insulation screens, copper tape screening, and an armouring layer of aluminium wire (single core) or galvanised steel wire (three core).

The cable is produced in accordance with IEC and GB standards for medium voltage power distribution applications.



Specifications

– Cable Type: YJV32 / ZR-YJV32 Armoured Power Cable
– Conductor: Copper (compact stranded, Class 2 – IEC 60228)
– Conductor Screen: Semi-conductive
– Insulation Material: XLPE (Cross-Linked Polyethylene), 90°C
– Insulation Screen: Semi-conductive
– Screening: Copper tape
– Inner Covering: PVC
– Armour: Aluminium wire (single core) / Galvanised steel wire (three core)
– Sheath Material: PVC or FR-PVC Type ST2
– Voltage Rating: 12 / 20 kV
– Maximum Conductor Temperature: 90°C (normal) / 130°C (emergency) / 250°C (short circuit ≤ 5 sec)
– Minimum Ambient Temperature: 0°C (fixed installation)
– Minimum Bending Radius: 15 × cable O.D (single core) / 12 × cable O.D (multi core)



Standards

– IEC 60502
– IEC 60228
– IEC 60332-3 (ZR-YJV32 / ZR-YJV72 only)
– GB/T 12706
– GB/T 18380-3 (ZR-YJV32 / ZR-YJV72 only)
– BS, DIN, ICEA (upon request)





If you require any further information on this listing please contact info@reflowx.com
